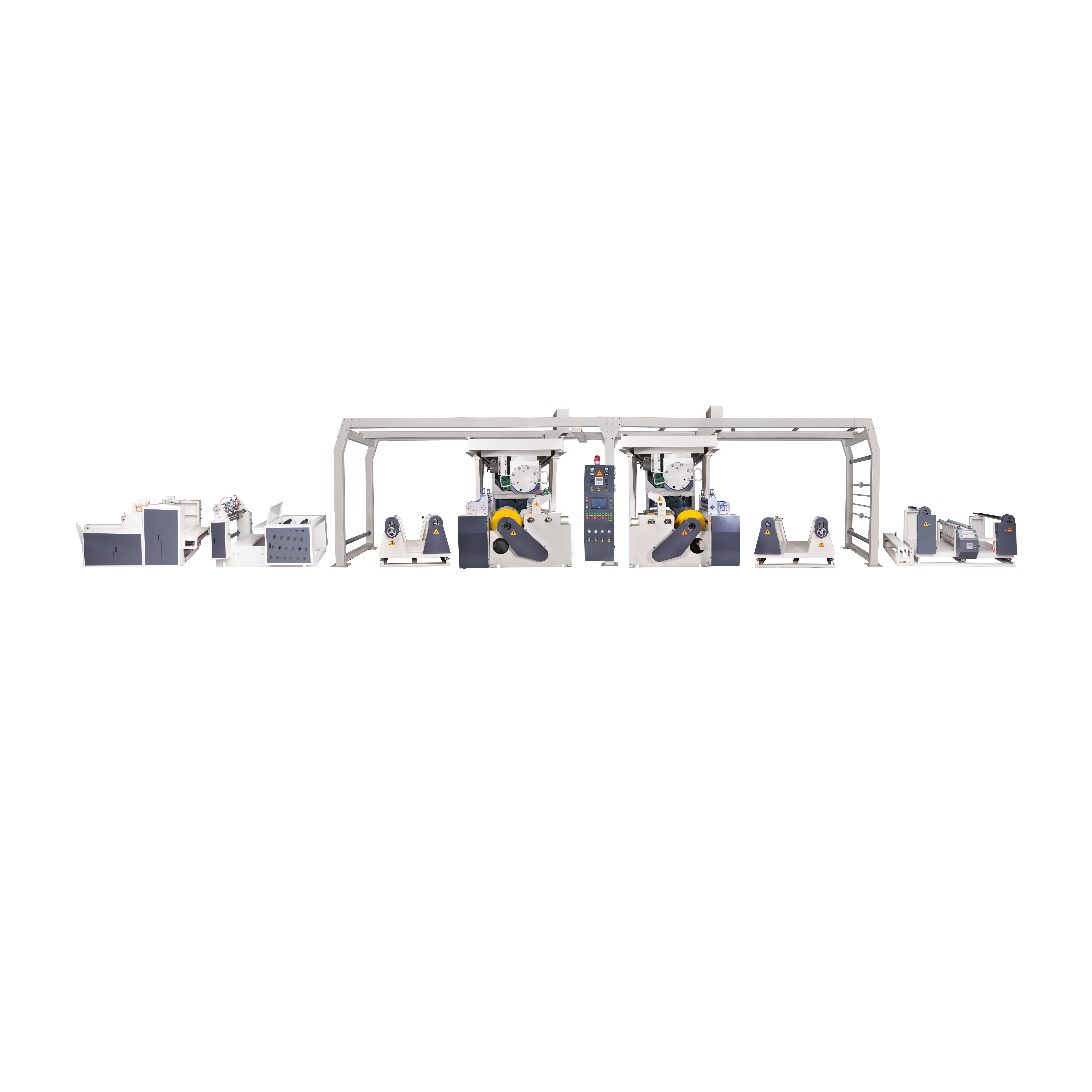

Laminating Machine

Shunchang Packaging Machinery

SKU: SC-FH-ZJ0301

This laminating unit is specially used for multi-layer lamination of plastic woven bags, non-woven fabrics, paper and other materials. It firmly laminates the film (such as PP, PE, BOPP) to the substrate through the extrusion device to enhance waterproofness, tensile resistance and aesthetics. Standard models SC-FH-ZJ0301/1000B and SC-FH-ZJ0301/1500C; customized versions available. Inquiry only for quotation.

Application

Multi-layer lamination for plastic woven bags, non-woven fabrics, paper and similar substrates

Film materials

PP / PE / BOPP and other coating films

Model

SC-FH-ZJ0301/1000B | SC-FH-ZJ0301/1500C | Customized

Die width (mm)

1000 (1000B) / 1500 (1500C)

Die number

2 (1000B) / 3 (1500C)

Max coated film width (mm)

800 (1000B) / 1300 (1500C)

Screw diameter (mm)

105 (1000B) / 108 (1500C)

L/D ratio of screw

1:30

Extruder motor power (kW)

20 (1000B) / 30 (1500C)

Heating power (kW)

85 (1000B) / 95 (1500C)

Coating speed (m/min)

30-230

Production capacity

About 25 million pieces/year

Installation dimension LxWxH (m)

23x7x3.5 (1000B) / 24x8x3.5 (1500C)

Weight (kg)

13000 (1000B) / 14000 (1500C)

Quotation

Inquiry only - send substrate, film type, required width and capacity for a tailored quote
